1985 Toyota Corolla GTS AE86 Hatchback/Liftback: My Tougekaze, 5AGE engine, 1711cc AE86 GTS

August 24, 2018


Ever since Albuquerque became a Sanctuary City (oops, the City Council now officially calls it an "Immigrant-Friendly City"- like the USA has not been friendly to Legal Immigrants?)  we have been overrun with Illegal Immigrants from all over, and I mean all over.  Caught on my dash cam, at the intersection of Eubank NE & Spain NE, I caught this Illegal Alien brazenly driving around with his primary vehicle in tow, apparently not caring who saw him.  I tried searching on Google for www.meninblack.gov  but no such luck!  Ah, well.





********************************************************************************







 Well, here we are 16 January 2018, and apart from new miles (161,550 odometer reading) nothing new to add. Car still a joy to drive.  Hardly a month goes by when someone at the Air Base does not leave me a note under my windshield asking me if I would like to sell it.  One stands out, a US Army recruiter routinely keeps in touch to get situation reports. Today a USAF Captain, whom I had not seen since last year, reminded me he was also interested in Tougekaze.   Took advantage of a nice, sunny day, and the fact that for January 2018 the Atomic Energy Museum has given the aircraft on display new paint jobs & took these photos.  New additions appear to be the Conning Tower of a now obsolete Nuclear Submarine, but it is not in the photos, and a MiG21 PF, seen just below the USAF FH-107.  You can also see a USAF B29, which was the aircraft that dropped the Hydrogen Bombs on Hiroshima & Nagasaki in August 1945.  Ironic, photographing a Japanese car with a B29 in the background.  Not done to offend or insult anyone.  It just worked out that way from the placement of aircraft in the Museum.  A Nike Missile is also displayed just to the left (photo left) of that tower in the photo.









NOTE:  Scroll down for  older post, with detailed description & photos of what is in the car.





SEPTEMBER 30, 2016:   OPTIMA BATTERY GIVES OUT AFTER 11+ YEARS SERVICE & SWITCHED BACK TO K&N FILTER FROM THE INJEN SYSTEM I HAD INSTALLED BACK ON JULY  2005.



After 11+ years  (11 years and 1 month to be exact) of dependable service in New Mexico's weather extremes from extremely cold to extremely hot, my Optima battery gave out on 29 September 2016, and was replaced with another Optima battery I have had on stand-by for the past two (2) years.  I highly recommend Optima batteries. It has be the longest lasting, most reliably dependable battery I have ever owned installed on my AE86!


As you can see, there is the new Optima battery  I replaced my old Optima red top with and the K&N filter I replaced my Injen Intake System with. I found the K&N filter gives me more power and better gas mileage.  My AE86 just turned 160,200 miles on the odometer, about 30,000 miles on the performance engine rebuild and still going strong!







JANUARY 23, 2016:    MY  AE86 TURNED 31  ON  12/2015!



For her 31st birthday, I thought I would photograph her alongside some classic aircraft, some of which, though unseen in these photos (museum closed today), are also still  flying.








MARCH  8, 2015:   MY AE86 TURNED 30 ON  12/2015



It's hard to believe that come May 2015,  it will be 30 years since I bought her at Kendall Toyota, Miami, Florida!   To quote a saying I heard in a movie a while back:   "Time has a way of going as fast as those summer vacations did when we were kids!"

Just a few additions or  improvements.   The theft of my  GT-S   emblem  and  TRD logo emblem from the back, and the not-too-uncommon civilian driver or  Albuquerque Police Officer running red lights without cause and killing people, motivated me to buy a dash camera for the rear of the car, and a GoPro4 Silver as the dash camera for the front of the car.    I've got some new emblems coming and they should be here any day.  Fortunately whoever stole them knew what he was doing and only a  tiny mark on the paint remained after I got rid of the old adhesive remaining.  That will be covered by one of the new emblems.

In the engine compartment,  I've added  a   Yamaha  billet aluminum oil cap, since it was Yamaha that built the heads for the AE86 and I thought they deserve the recognition, at least from me!     To see where I'm driving, since one of the things that starts fading as you get older are the eyes,  I  got her some Quartz Halogen driving lights .

In the interior,  I  got her one of those nice weighted leather shift knobs and a Momo leather boot for the shifter.   The Sisal floor mats are starting to show their age, so there are new ones coming soon.

She continues to be a fantastic car, and even at this altitude  (5,280 feet +)  you have to be careful when you're trying to pull away from a stop sign during peak traffic hours,  otherwise people will think you're suffering from 'Middle Age Crazies'  or  have a permanent case of 'Arrested Development'.  It would be nice one day to see how she performs at sea level.  She consistently gives, depending on time of the year,  between   25.7 mpg and 29.5 mpg in the city, and 33 mpg on the open highway, as is documented in this brand new, nifty  Jeppesen Pilot Logbook I found at a Goodwill for a buck back in September 2001!  At present she's got
158,132.8  actual  miles on the odometer, which translates into about 5,271 miles per year.
Some years more than others, of course.  We're talking the  average over a 30 year period.

Well, enough boring you with 'digital diarrhea':   Here are her latest photos, taken today, March 9, 2015,  both  at a nearby park, and at home:

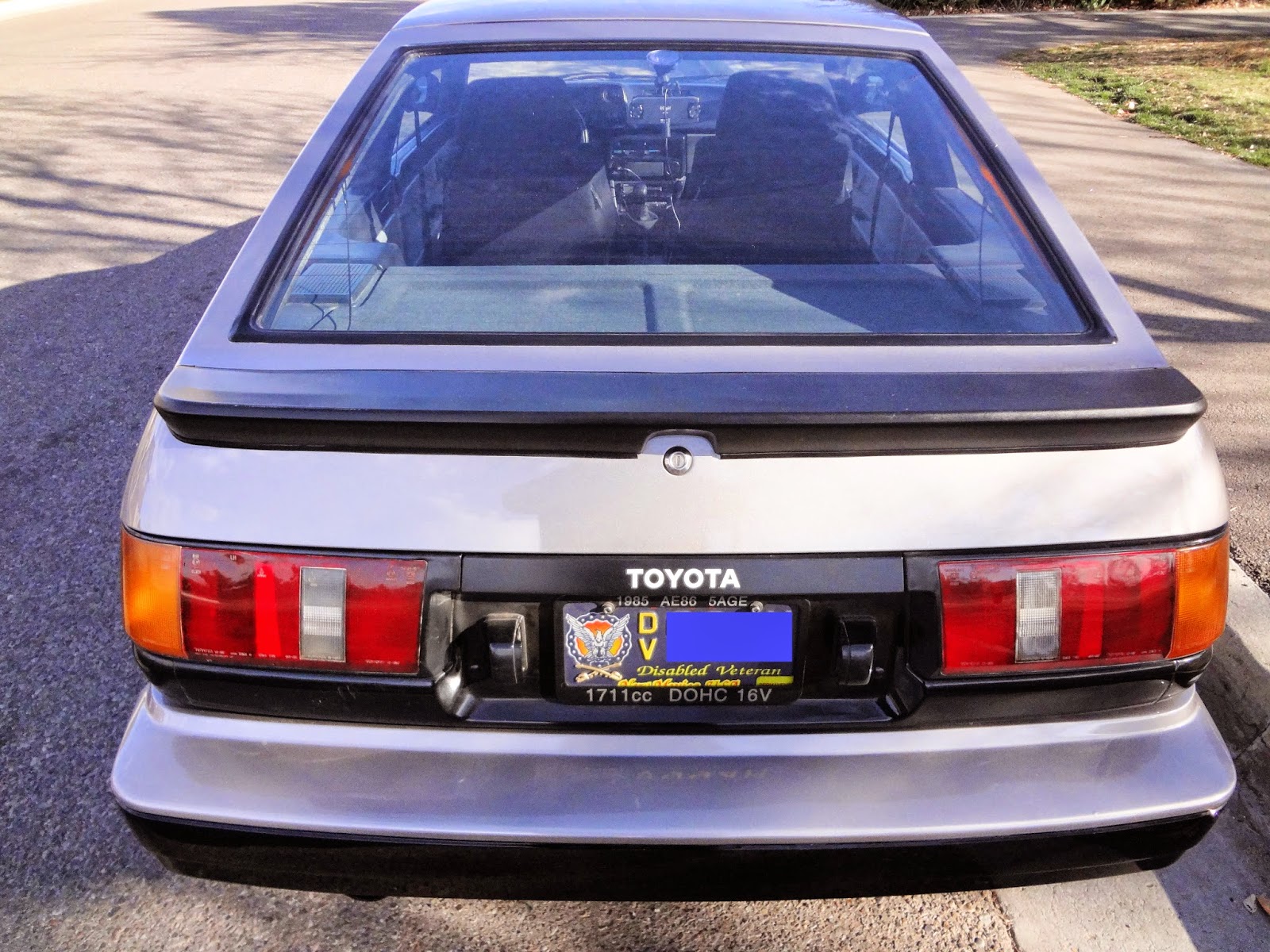

1985 TOYOTA COROLLA GTS AE86 HATCHBACK/LIFTBACK 5A-GE 1711cc



1985 TOYOTA COROLLA GTS AE86 HATCHBACK/LIFTBACK  5A-GE   1711cc



1985 TOYOTA COROLLA GTS HATCHBACK/LIFTBACK  5A-GE   1711cc

1985 TOYOTA COROLLA  GTS  AE86  HATCHBACK/LIFTBACK  5A-GE  1711cc

1985 TOYOTA COROLLA GTS AE86 HATCHBACK/LIFTBACK  5A-GE  1711cc

1985 TOYOTA COROLLA GTS AE86  HATCHBACK/LIFTBACK  5A-GE  1711cc

1985 TOYOTA COROLLA GTS  AE86  HATCHBACK/LIFTBACK  5A-GE  1711cc



1985 TOYOTA COROLLA GTS AE86 HATCHBACK/LIFTBACK  5A-GE  1711CC

1985 TOYOTA COROLLA GTS  AE86  HATCHBACK/LIFTBACK 5A-GE  1711cc


1985 TOYOTA COROLLA GTS  AE86 HATCHBACK/LIFTBACK  5A-GE  1711cc

1985 TOYOTA COROLLA GTS AE86 HATCHBACK/LIFTBACK  5A-GE  1711cc


I'm  enclosing this 'weird' picture with the refrigerator magnets on the car because some local woman  I met, who used to be the body shop manager  for a large dealership, and then went to work for an  auto body repair shop as an estimator  (makes you wonder why, doesn't it?) said that the left rear quarter panel had  not only 'bondo'  but huge amount of bondo!  (WTF!?)   I suspect she was trying to make me think I had bought a car that had been in a fender bender before I bought it in May 1985, from Kendall Toyota  (things like that do happen occasionally!) to take a lot of the joy of being the original owner out of me.    So when I got home, I pulled out the old trusty 'soft'  refrigerator magnets and guess what?  Every single one of them stuck with absolutely no problems throughout the entire area.  What is it with these young women today?   It's like they live by that  'It's  kool to be krewl'  kind of crap and 'get off' by being nasty, and not in a  GOOD  nasty kind of way,   lol. Here's the photo, which I mailed to her.  She had nothing to say, lol.




When I first saw her, she reminded me of the 1984  Opel Monza  GSE Coupe', only I liked the Toyota Corolla GTS's front end treatment much better.   After reading  an article in the   Miami Herald, on Wednesday, May 29, 1985, Section  E,  entitled:  "Capturing the Spirit of Alfa Romeo:  Toyota Does It With Exotic Engine",  I  knew this car deserved  a  closer look.   The only thing I did not care for were those HUGE decals on either side of the car proclaiming   GTS TWIN CAM 16, and I would have preferred a solid color on the car and interior.  But after test driving and seeing what else the dealer had,  I  opted for this one.

I bought her in May, 1985, at Kendall Toyota, Miami, FL, for $9,250,  plus tax.  Thankfully,  we were far away enough from the beach so as not to have been affected by salty air, and  we moved out of Florida deep inland into the USA 22 months after I  bought her.  She has been benefiting from dry,  desert climates since.   She has been a real joy.   In May through July 8th,  2005, at 129,457 miles, I gave her a token of my gratitude with an engine rebuild.  I had been stockpiling performance parts by buying them wholesale through my now defunct Japanese auto parts import company, Interex, from 1987 thru 1990.  I  REALLY regret not spending a bit more and buying the 5AGX Valve Cover Set  (HKS Part No. 1344XX-10022X), which at the time  retailed for $229.95, less of course in wholesale!)  The rebuild included  HKS Stroker Kit- 83mm stroker crankshaft with cast light-weight aluminum pistons (HKS Part No. 1029JA-10023X). An HKS 2mm metal head gasket (HKS Part No. 1396KA-10023X) was used to keep compression ratio down in view of  relatively low-octane of today's "premium" gasoline ( 91 octane, feh!)  I WISH HKS LITERATURE HAD MENTIONED THAT THE ENGINE BLOCK WOULD NEED MACHINING TO ACCOMMODATE THE KIT!  This was a last minute, and fairly expensive little extra that bumped up the estimate on the rebuild, lol.   Carrillo Connecting Rods  (TRD Part No. 13201-FT001), TRD Ignition Wires (TRD Part No. 90919-AE851),  HKS fuel injection camshafts (HKS Part No. 1326BX-10023X & 1326FX-10023X),

For the "Doubting Thomases"  among  you who have contacted me, yes,  this is 100%  purebreed Nipponese, Land-of-the-Rising-Sun,  AE86L/AE88,  Limited Slip Differential  GT-S, and  not a "hybrid"  transplanted  SR5!   See  "the  stinkin'   badges"   below, lol.



I had turned this on its side to make it easier to read, but when I uploaded it, it printed it in its original  position.  Go figure!


     STILL HAVE  THE ORIGINAL GREEN "TOYOTA MOTOR" TOOLBAG  AS  WELL!








With the full-size (5.5jj x 14 inch)  aluminum alloy wheel as a spare, the OEM wheel tie-down set up could no longer be used, so my trusty  US Army belt was pressed into service.  It holds the wheel in place without marring the finish.
















                            AE86 MODIFIED FRONT SUSPENSION DETAIL

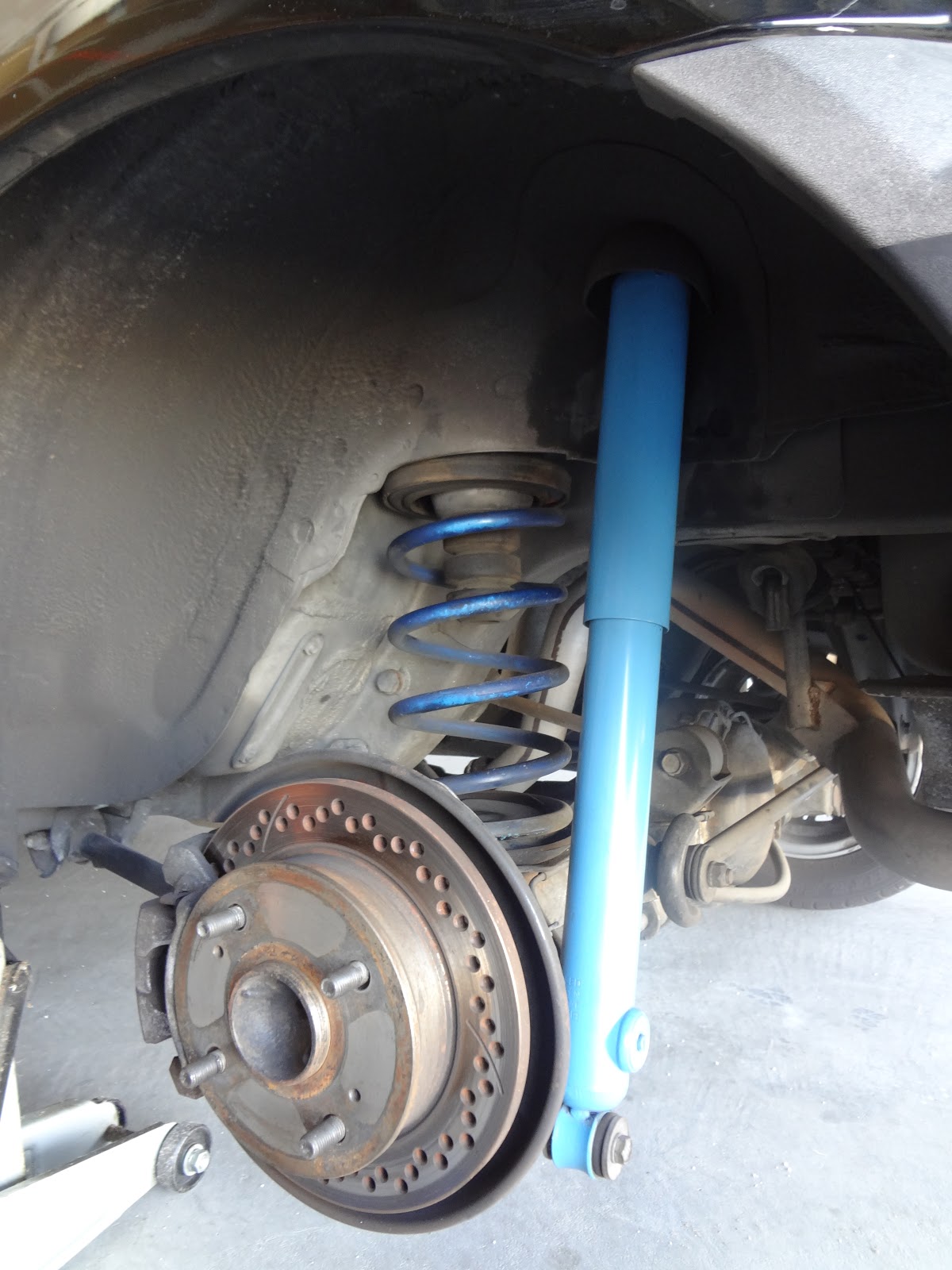

                             AE86 MODIFIED REAR SUSPENSION DETAIL






HKS  SPORT  EXHAUST SYSTEM  FOR 1984-1987  AE86 P/N  3302-ST029





 When I had owned her for four (4) months,  September 1985.

 1986 Celica Fuel Injectors (Part No. 23209-74020-file off the plastic lug that prevents the wiring harness plug from engaging the injector body, in accordance with Toyota Performance Manual, by  Pat Braden)   The head is a new Yamaha  Blue Top which has been ported and polished in accordance with the TRD Toyota Corolla/Sprinter 1600GT (AE86) Sports Parts & Modification Manual, (TRD Part No. 228-2832)  HKS Heavy Duty Clutch & Pressure Plate Set  (HKS Part No. 7010XX-10023J)  , HKS Light Flywheel   (HKS Part No. 7020XX-10023J)  HKS adjustable timing gears,   Injen intake system,  TRD Header, HKS sport exhaust system, which includes a catalytic converter-shaped pre-muffler  (HKS Part No. 2051XX-10423J) , Koyo aluminum radiator,  TRD  lowering springs   (TRD Part No. 48131-AE801 & 48231-AE801-39), KYB Shocks (TRD Part No. 48511-AE862 & 48531-AE881). I had to make do with another brand's shocks, until at last I was able to get the KYB adjustables I was after for the rear.  I'll re-photograph the car's corners without the wheels again to show that.   Goodridge Stainless Steel brake lines, Bembro ventilated rotors, metallic brake pads. The engine was balanced during the rebuild.   In December of 2005, I gave her a  Momo steering wheel (now I can see all my gauges all the time!),  Recaro seats, sisal mats, and a leather shift boot for her 21st birthday (she was manufactured in Japan in December 1984), those blue radiator hoses that add a bit of color to the engine compartment.    Tires and wheels,  I have three (3) sets of tires and wheels:  The original "cookie-cutter" Toyota wheels (4)  5 1/2jj x 14" with  Bridgestone  185/60R  82H x 14 Potenza, both in almost like new condition;  I've got the also original "snowflake"  Toyota wheels (5), 32-spoke  5 1/2jj x 14", with Sumitomo 195/60R 14 HTR200 with about 1,500 miles on them; and an old set of Enkei EK88  6jjx15 inch wheels  (4)  with  Yokohama 195/50Rx15 tires with about 2,500 miles on them.  I   use them depending on road conditions.

 I've kept every single receipt to prove all the parts and labor are in the car, and of course, then there are the photos themselves.  She has been a great little car and at this altitude  (5,200 feet) she still gives me between 25 to 29 mpg city driving- depending on driving conditions and time of the year- and 33 on strictly highway driving.  Hardly a month goes by when  some  young guy doesn't honk at me, pulls over and tells me she was featured in the AE86  Initial D  video game and offer to buy her.  The most flattering instance was of a yuppy in a very late model gun-metal blue Lexus offering to buy her on the spot at a Sprouts grocery store's parking lot.  I tell all them I'll drive her until the law says I can't drive anymore or I die, whichever comes first, lol!   My GT-S: a great dependable  Sleeper/Q-car that is fun to drive and gives great gas mileage!  She is now a 5AGE or 5AGX, 1711cc, DOHC 16V.     At present (10/28/2012) , she  has  152,555 miles on the odometer and  screams  like a banshee, especially AT SEA LEVEL!  In a run from Albuquerque to Colorado Springs, I had her up to 130 MPH on the clock which, with the 2MPH error on the speedometer translates into 128 MPH!   It was a lone burst of speed after the engine was well broken in, and keeping my speed between 65mph and 75mph I got 33 miles per gallon on that trip, in August 2009.   She is thoroughly enjoyed,  BUT NEVER ABUSED!

I  like  the old look stainless steel better than the new model's look as well. The new HKS 3302-ST029 is superb  however.  It's heavy gauge stainless steel and evenly coated in ceramic.  The muffler bears something new the old one did not:  The JASMA  metal label which apparently proclaims it has passed  the standards of that Japanese body.  It bears a serial number as well.  I  honestly don't know if that's the muffler's/exhaust unit's serial number, or the serial number of the JASMA control tag.  Mine reads  051  (on the top portion of the label)  and  94000017 (on the bottom portion of the label).  The box it comes in  is magnificent and the  "packing pillows" are equally impressive.  It could probably withstand anything short of an M1 Abrams tank taking a short-cut over it.  My only complaint is that I wish that there was an English translation to accompany the documentation that comes with the product!  It's not an instruction flier or anything of the sort.  I'm just curious as to what it says!   The system also comes with some equally excellent case-hardened bolts, nuts, washers & lock washers and two superb gaskets.  It was delivered late in the afternoon   10/29/2012.

Well, here it is,  Friday, November 2, 2012.   By noon the chilly weather had turned pleasantly warmer and there was an abundance of light in the garage.  The removal of the old HKS 2051XX-10423J Sport Exhaust (without the HKS pre-silencer/pre-muffler which I kept on) and installation of the HKS  3302-ST029, and taking off  tires on both axles on the driver's side, jacking it up, clean-up, etc. took exactly 2 hours, which for an old fart like me I don't consider too bad.  Everything fits the way it's supposed to.  I did notice some melted black plastic on the HKS pre-silencer, which looks like a plastic lawn trash bag had an encounter of the 3rd kind with  some time ago.  I'm too tired today to hassle with solvent to remove it, so "manana".  Here is a photo of both old and new HKS systems side by side.  Though the muffler on the old HKS sport exhaust is smaller than the new one,  it is heavier.   The  new HKS Sport Exhaust has a larger diameter, but as a whole it feels slightly lighter.   The old sport exhaust's  muffler is heftier and appears lined with thicker metal, though.  I'm a little worried about how it will sound when I start it up tomorrow morning  (heading straight for the shower now and a late lunch!).  You can see from the tail pipe of the HKS 3302-ST029 right to the back of the muffler, something you could not do with the old one!    It  does  look  pretty nice on the car though.   I  wasn't able to retain the old pipe that goes from the pre-silencer  (or catalytic converter in other  cars) to the new muffler because the flanges do not meet at the same angles.  Ah, well.  Anyway, here they are, side by side and the new HKS Sport Exhaust installed on my GTS Hatchback!

November 3, 2012,  5:00 am.  What a relief!  I was very pleasantly surprised by how quiet the new exhaust system is.  It is a bit quieter than the OLD HKS Sport Exhaust (which dated to 1987).  It doesn't sound any different,  just quieter, especially in 1st and 2nd gear.    For one thing,  my car no longer sets off the alarms of cars parked along the street in some neighborhoods, which used to be a major embarrassment!   As far as power goes, it's really hard to say because my car had plenty of get-up-and-go before.   I  think it's a bit quicker in accelerating from 4th and 5th gears though.  As far as mileage, only time will tell if  it is also better  miles-per-gallon wise.  I've kept every gas receipt since about  October 2001, so it should be very easy to see if there's  a noticeable increase in  mpg.  Overall, I'm very happy.  I do hate to toss out the old system, especially the pipe between the pre-silencer/pre-muffler and the muffler.  It's stainless steel and in pretty good shape.  But Lord knows as it is I have to do a  clean-up in my garage to get rid of some stuff.  I really don't need to add any more to the existing clutter!


THE  NEW  HKS  SPORT EXHAUST  3302-ST029  NEXT TO THE OLD HKS SPORT EXHAUST  2051XX-11423J FOR COMPARISON.   THANKFULLY, I WAS ABLE TO  RETAIN  THE  HKS  PRESILENCER,  CLEVERLY DISGUISED AS A CATALYTIC CONVERTER.   IT'S ALMOST LIKE WHAT'S NOW SOLD AS   A  "TEST  PIPE", EXCEPT THE HKS PRESILENCER IS  SHAPED LIKE A CATALYTIC CONVERTER.


THE NEW  SYSTEM  INSTALLED AND  FEELING RIGHT AT HOME





December 9, 2012:  After carefully looking at  everything out in the market, comparing prices and reading evaluations  from user/purchasers,  I've decided to invest in a Techno Toy Tuning (T3)short throw shifter.  It looks like it offers the best combination of quality, price and quiet operation.  I'll let you know more and post photos after I've received it and installed it.

December 14, 2012:   My T3 Short Throw Shifter arrives!  Beautifully machined and carefully  packaged.  It also comes fully assembled and with detailed instructions, something the "bargain" short-throw shifters don't include.    Our happiness is overcast by the criminal insanity going on in our country.   Not since  May 18, 1927, in Bath, Michigan, has such a horrible criminal act been committed against so many young children.   In the Bath, Michigan massacre, the act was perpetrated  by,  of all  people, a Member of their School Board!  But I don't want to use this blog as a soap-box to express my points-of-view of today's  zeitgeist.

December 16, 2012:    It has been almost non-stop broadcasting of the horrible news out of Newtown's  Sandy Hook Elementary and I've decided that in spite of the cold (it snowed overnight and into the early morning)  I  would  install my new T3 Short Throw Shifter to take my mind off the latest tragedy if only for a little while and provide some "therapy" for me.   Everything was just as basic and straightforward as Techno Toy Tuning stated.  The most difficult part of the whole thing was working with the high-temperature gasket maker/sealant.  The tube developed a tear and it was messy business working with it.  The OEM shifter appears pressed and machine-pinned into it's second, and thicker stage.  So in order to remove the dome-shaped  rubber boot, and the squared off, accordion-shaped rubber boot, I had to use an Exacto knife and make a small incision along their seams to take them off the old (OEM) shifter and transfer them unto the T3 shifter, which I was able to do.   Below follow photos of  a few steps of the process and the finished  project  with leather shift boot and weighted shift knob installed.

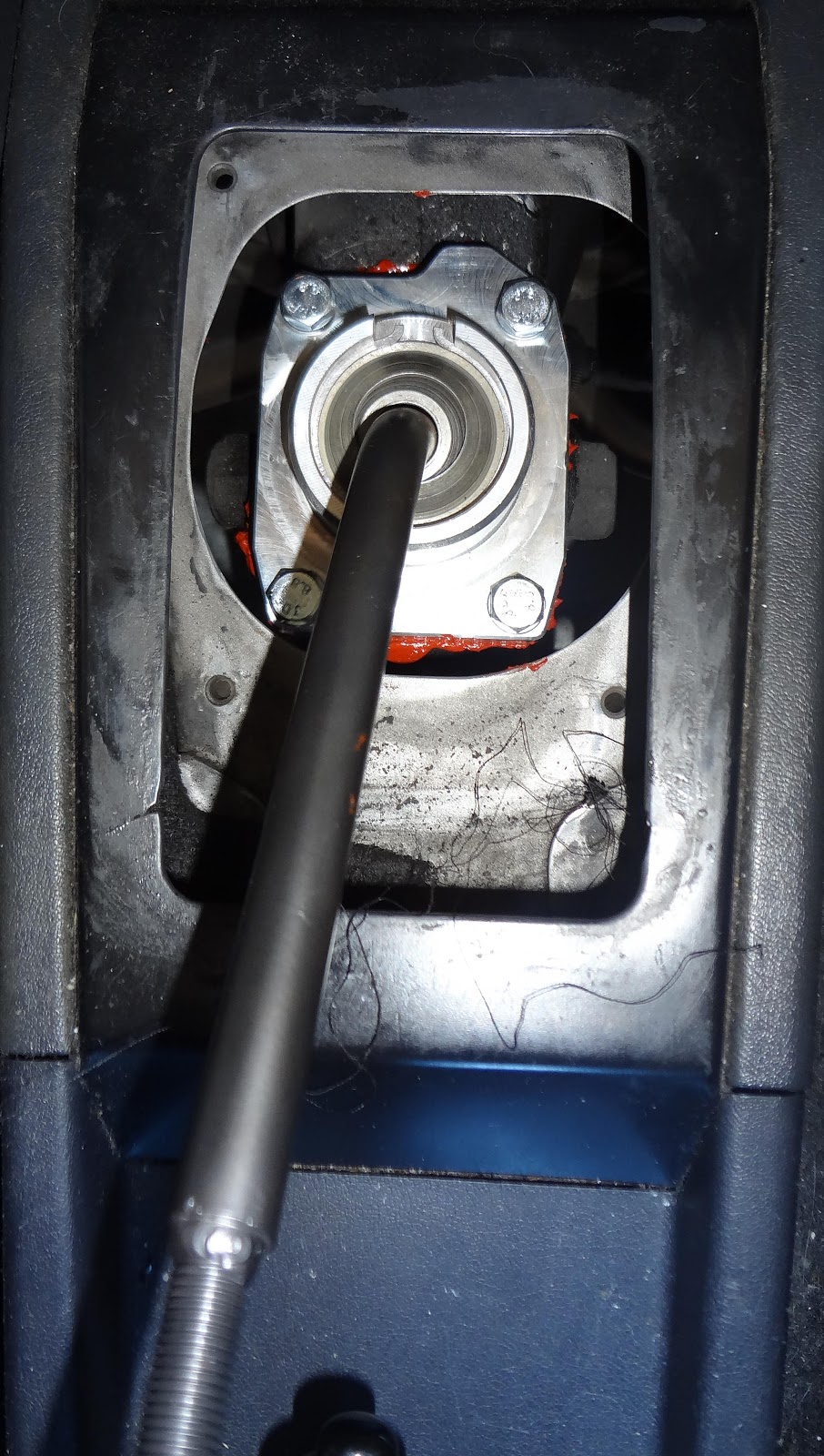

Shifterectomy performed.  Ready to install T3 Short Throw Shifter after hi-temp gasket former is applied.


                                       T3 Short Throw Shifter successfully transplanted


T3 Short Throw Shifter side-by-side with OEM AE86  shifter


T3 Short Throw Shifter side-by-side with OEM AE86 Shifter


Project completed.  From the way the shifter sits, one would think she is in 2nd gear, but she in 1st  gear!   The best was yet to come!


If the reader had owned an AE86 since new, or paid for an overhaul of their shifter and transmission,  they would have an idea how good my AE86 feels  with the T3 Short Throw Shifter installed!   The car feels like it is brand new  again!  Even better, the shifts are extremely short/quick.   It feels like you are shifting  an exotic mega-bucks car with a gated shifter.  That's how short and precise it feels.   I took it on a 6 mile round trip run  and I  was totally floored!  It exceeded all my expectations and made driving my Tougekaze even more fun that it has been the last  27  1/2  years!  I used to experience an occasional "grind" when shifting into 3rd once in a while.  That's gone.  I'm sorry I did not find out about this product and check it out sooner!  The folks at Techno Toy Tuning are geniuses!  There is cheaper stuff out there that you can buy, but  I've examined it first hand and none has the quality, offers the same reduction in throw, comes fully assembled, comes with instructions, or offers the level of customer service and attention  that  Techno Toy Tuning delivers.    You will not find  this kind of quality,  ease of installation,  quiet operation,  reduction in throwing distance for this kind of price anywhere else. I'm totally sold on Techno Toy Tuning short throw shifters.  When I have a bit more disposable cash on hand,  I'm going to invest in their other product offerings!  Thank you Gia, Gabriel and Myra!

https://www.technotoytuning.com/toyota/ae86/short-shift-kit-ae86-corolla

One  last  thing:    I'm  still  in  search  of   the  elusive  HKS  5A-GX  Camshaft Covers for my  AE86.   Anyone know where  a  set  of   them  in  excellent  shape  reside,  please leave me a note!
